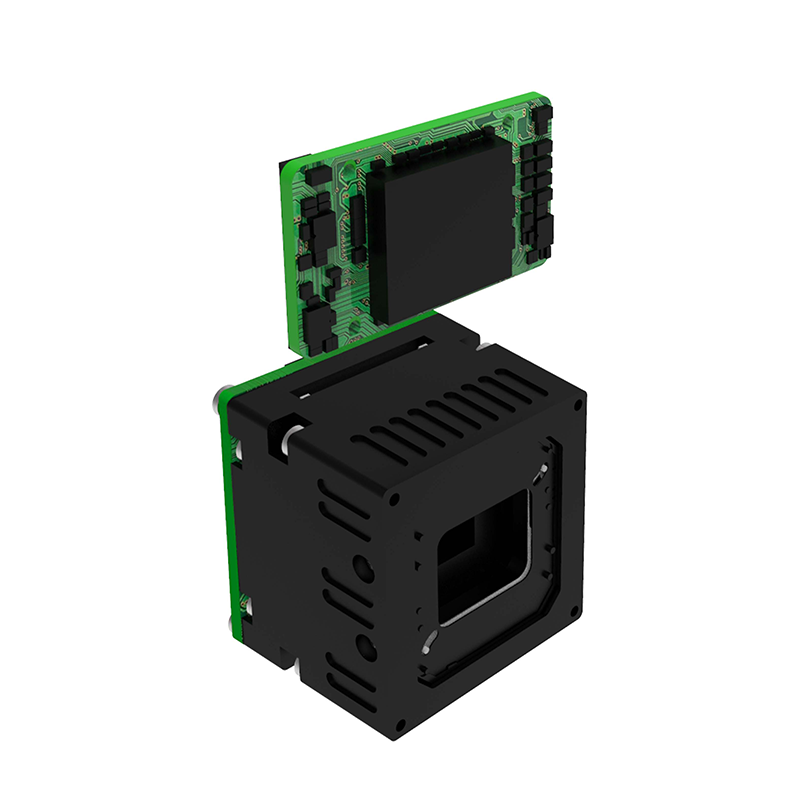

HAOYING LV1225A Single-Chip Dual-Band Imaging Module
High-resolution dual-band module. Up to 1280×1024 LWIR + 2560×1440 visible. CML or MIPI. 35×35mm, DC 5V. Two detector configuration options.
| IR Spectral Band | Long-wave IR (LWIR): 8–14 μm |
| IR Pixel Size | 12 μm |
| Visible Pixel Size | 2.5 μm |
| Config Option 1 | IR 1080×1024 + VIS 2560×1920 |
| Config Option 2 | IR 1280×1024 + VIS 2560×1440 |
| Video Interface | CML / MIPI |
| Communication Interface | RS422 |
| Power Supply | DC 5V |
| Dimensions | 35×35 mm |
| Compatible Lenses | Fixed-focus athermalized, Continuous zoom, Motorized focus, Dual FOV |
The HAOYING LV1225A is the high-resolution flagship of the single-chip dual-band series, offering up to 1280×1024 LWIR combined with 2560×1440 visible light from a single 35×35 mm module. Two detector configurations allow optimization for either infrared or visible resolution priority, with CML or MIPI interface selection.
Configuration Options
Option 1 — Visible Priority:
- IR: 1080×1024 @ 12 μm
- Visible: 2560×1920 (approximately 5 MP)
Option 2 — IR Priority:
- IR: 1280×1024 @ 12 μm (maximum IR resolution)
- Visible: 2560×1440 (QHD)
Both configurations available with CML or MIPI video interface.
Key Features
- Highest IR resolution single-chip dual-band — 1280×1024 LWIR option
- Two configuration variants — optimize for IR or visible resolution
- CML or MIPI — flexibility for SoC and FPGA platforms
- 35×35 mm — standard compact board format
- DC 5V — portable and UAV power compatible
Typical Applications
Professional UAV dual-band payloads, advanced EO/IR handheld systems, airborne reconnaissance pods requiring high-resolution dual-channel imagery, and next-generation compact multi-band turret cores.
