Split-type Visible Light Imaging Module
Split-type visible light modules from 1080p to 4K (3840×2160). FPGA platform, global shutter. MIPI, CML, SDI, CameraLink options. 35×35mm board.

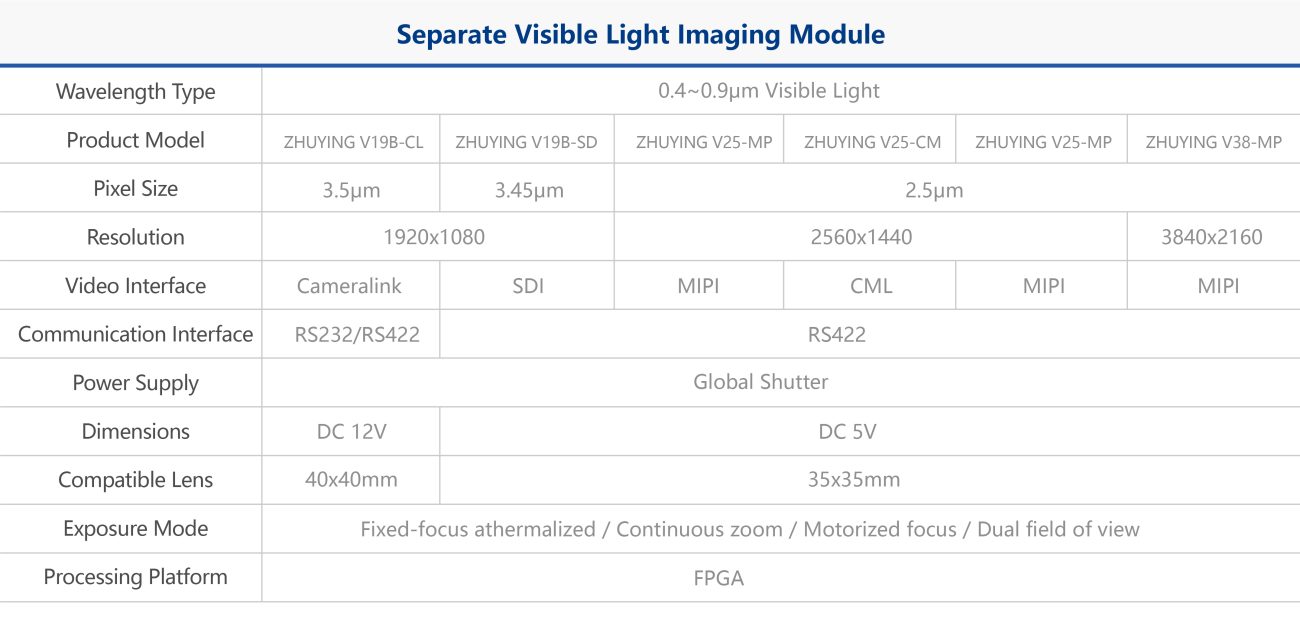

| Spectral Band | Visible Light: 0.4–0.9 μm |
| Resolution Options | 1920×1080 (V19B) / 2560×1440 (V25) / 3840×2160 (V38) |
| Pixel Size | 3.5 μm (V19B-CL) / 3.45 μm (V19B-SD) / 2.5 μm (V25/V38) |
| Video Interface | CameraLink (V19B-CL) / SDI (V19B-SD) / MIPI (V25-MP, V38-MP) / CML (V25-CM) |
| Communication Interface | RS232/RS422 (V19B) / RS422 (V25/V38) |
| Shutter | Global Shutter |
| Processing Platform | FPGA |
| Power Supply | DC 12V (V19B-CL) / DC 5V (others) |
| Dimensions | 40×40 mm (V19B-CL) / 35×35 mm (others) |
The ZHUYING V19B/V25/V38 split-type visible light module family covers the full HD to 4K resolution range with global shutter architecture — critical for applications involving fast-moving targets or platform motion. Built on FPGA, these modules offer deterministic low-latency output compatible with EO/IR fusion and tracking systems.
Model Selection Guide
| Model | Resolution | Interface | Power |
|---|---|---|---|
| V19B-CL | 1920×1080 | CameraLink | DC 12V |
| V19B-SD | 1920×1080 | SDI | DC 5V |
| V25-MP | 2560×1440 | MIPI | DC 5V |
| V25-CM | 2560×1440 | CML | DC 5V |
| V38-MP | 3840×2160 | MIPI | DC 5V |
Key Features
- Global shutter — eliminates rolling shutter artifacts in dynamic scenes
- FPGA platform — deterministic latency for targeting and tracking systems
- Scalable to 4K — future-proof resolution for next-generation EO/IR systems
- DC 5V (most variants) — compatible with UAV and portable power systems
Typical Applications
High-resolution visible channel for EO/IR turrets, fast-target tracking systems, UAV payload visible cameras, gimbal integration, and multi-sensor fusion platforms.
