Uncooled LWIR

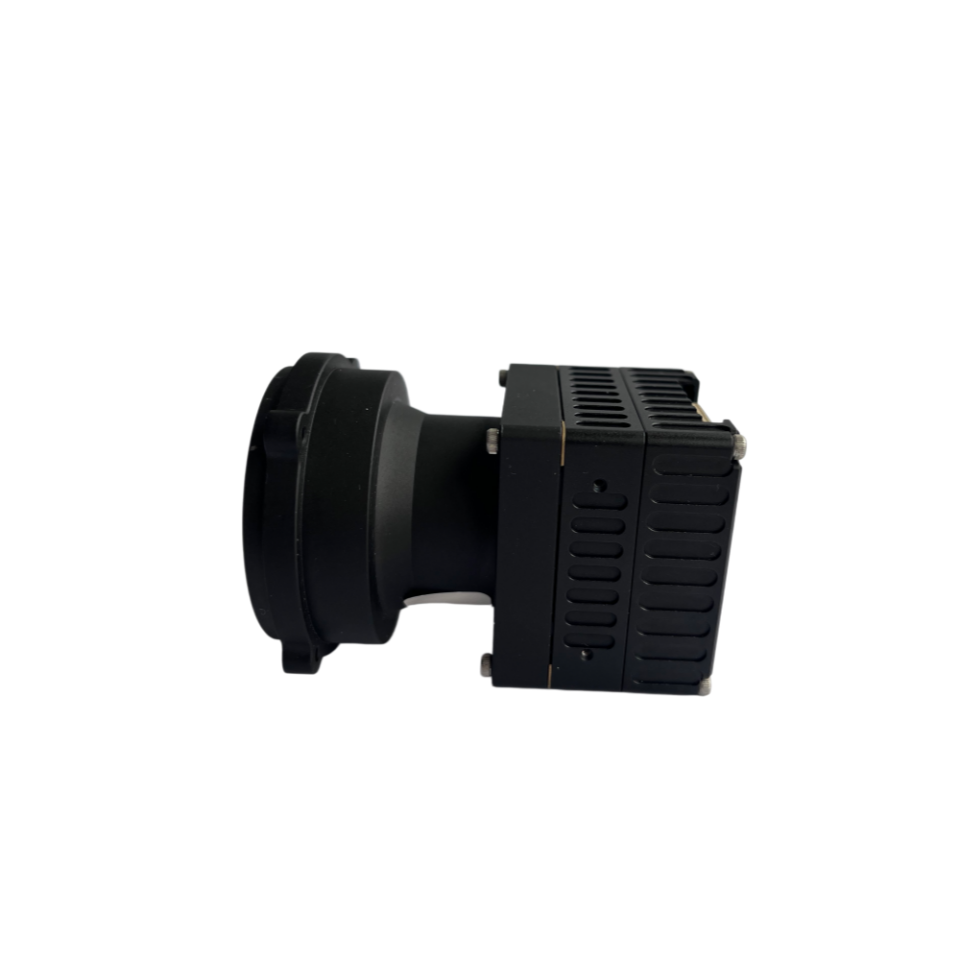

1280 Long-wave Infrared Imaging Module
Model: ZHUYING L12 Series
Long-wave IR (LWIR): 8–14 μm
1280×1024 uncooled LWIR module in a 35×35mm board. Available in four interface variants: MIPI, CameraLink, BT1120, CML. DC 12V.

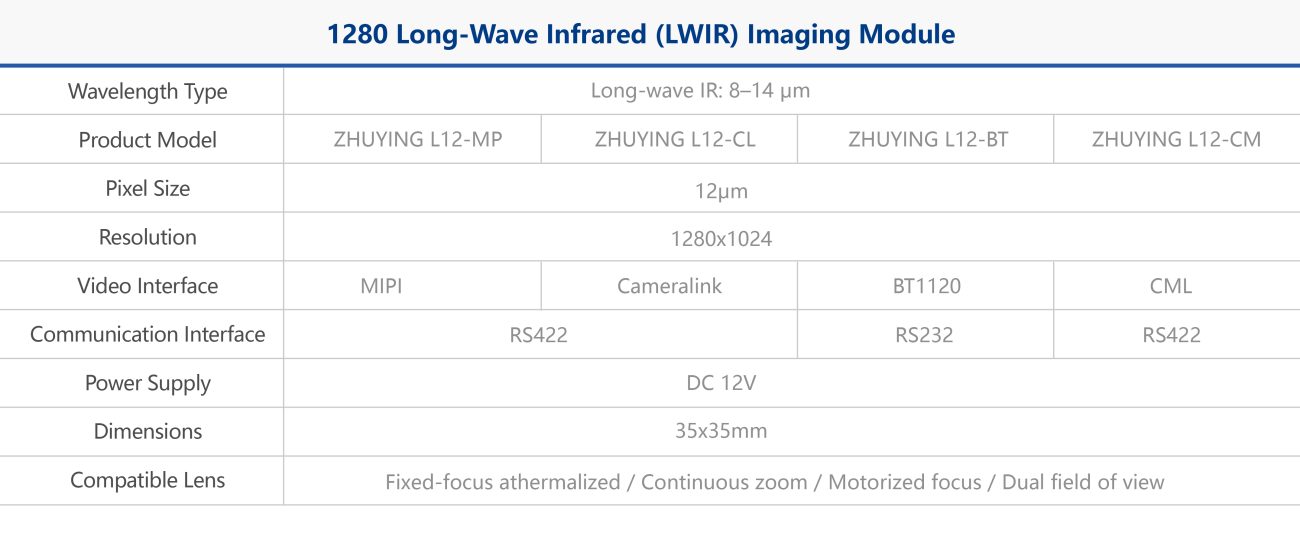

| Spectral Band | Long-wave IR (LWIR): 8–14 μm |
| Resolution | 1280×1024 |
| Pixel Size | 12 μm |
| Video Interface | MIPI (L12-MP) / CameraLink (L12-CL) / BT1120 (L12-BT) / CML (L12-CM) |
| Communication Interface | RS422 (MP/CL/CM) / RS232 (BT) |
| Power Supply | DC 12V |
| Dimensions | 35×35 mm |
| Compatible Lenses | Fixed-focus athermalized, Continuous zoom, Motorized focus, Dual FOV |
The ZHUYING L12 Series delivers 1280×1024 long-wave infrared imaging in an industry-standard 35×35 mm board format. Four distinct variants cover the full range of digital interface requirements: MIPI, CameraLink, BT1120, and CML — enabling drop-in integration with virtually any SoC or FPGA-based imaging platform.
Variant Selection Guide
| Variant | Interface | Comms | Best For |
|---|---|---|---|
| L12-MP | MIPI | RS422 | SoC-based platforms, mobile |
| L12-CL | CameraLink | RS422 | Frame grabber systems |
| L12-BT | BT1120 | RS232 | Broadcast / video equipment |
| L12-CM | CML | RS422 | High-speed serial systems |
Key Features
- Ultra-compact 35×35 mm — fits in the tightest payload envelopes
- Four interface variants — one product family covers all digital architectures
- No cooling required — immediate-on with no warmup time
- Low power, DC 12V — compatible with standard payload power rails
Typical Applications
UAV EO/IR turret cores, portable thermal cameras, security and surveillance systems, perimeter detection sensors, and handheld thermal devices.
Interested in ZHUYING L12 Series?
Contact our engineering team to discuss integration requirements, custom configurations, and volume pricing.
