1024 High-Temperature Cooled Mid-wave Infrared Imaging Module
1024×768 cooled MWIR module. No overexposure in daylight, no grayish tone at night. Compact size, ultra-low power consumption. SDI/CameraLink interface.

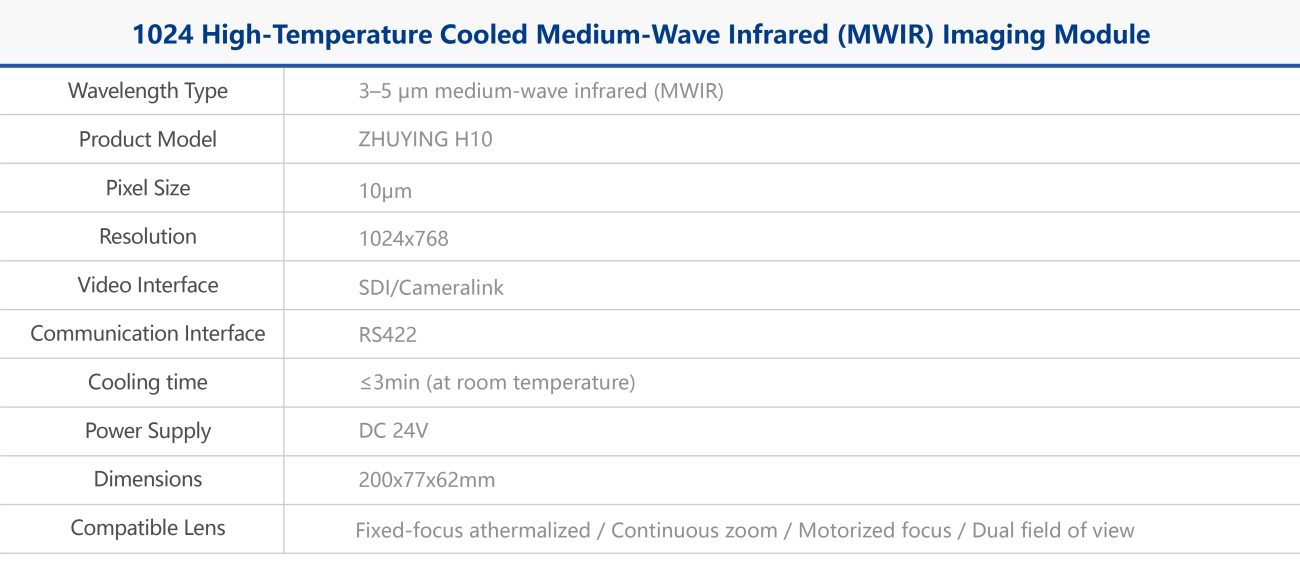

| Spectral Band | Mid-wave IR (MWIR): 3–5 μm |
| Resolution | 1024×768 |
| Pixel Size | 10 μm |
| Video Interface | SDI / CameraLink |
| Communication Interface | RS422 |
| Cooling Time | ≤3 min (at room temperature) |
| Power Supply | DC 24V |
| Dimensions | 200×77×62 mm |
| Compatible Lenses | Fixed-focus athermalized, Continuous zoom, Motorized focus, Dual FOV |

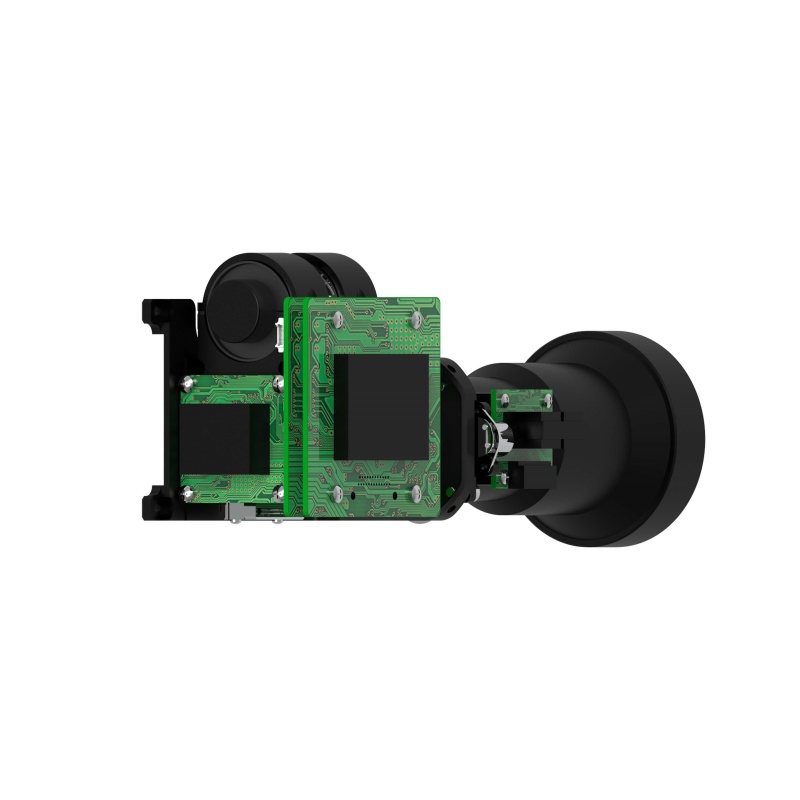

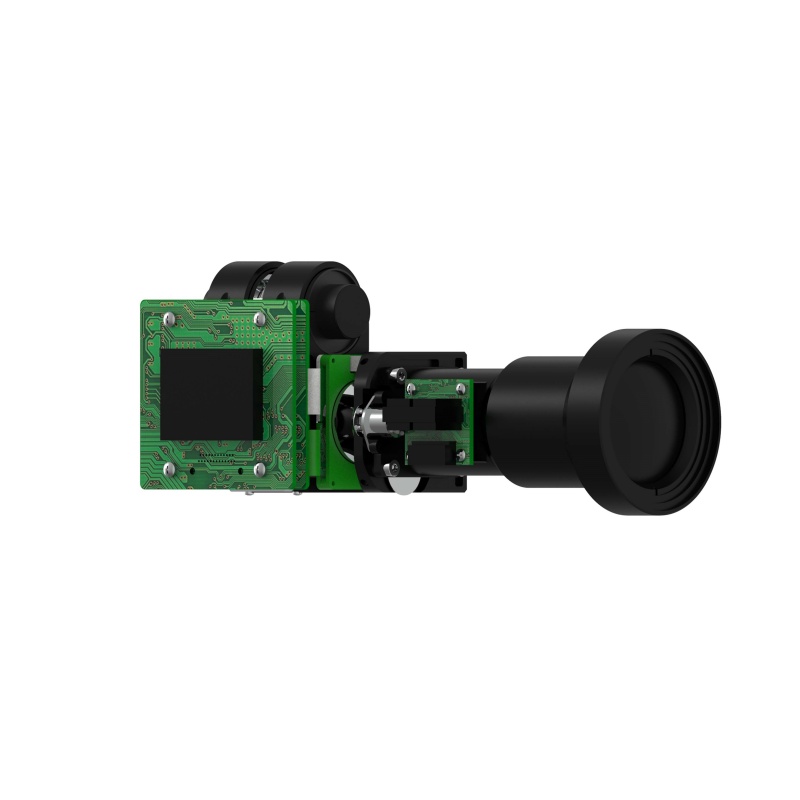

The ZHUYING H10 is a high-temperature cooled mid-wave infrared imaging module delivering 1024×768 resolution at 10 μm pixel pitch in the 3–5 μm MWIR spectral band.
Designed for demanding EO/IR applications requiring maximum thermal sensitivity, the H10 uses a Stirling-cooled detector to achieve NETD performance unattainable with uncooled technology — critical for long-range target detection and fire control applications.
Key Features
- No overexposure in daylight — adaptive dynamic range handles high-contrast scenes without saturation
- No grayish tone at night — superior NETD performance maintains image clarity in cold, low-contrast environments
- Compact and lightweight — optimized for integration into gimbals, turrets, and fixed-mount EO/IR systems
- Ultra-low power consumption — efficient Stirling cooler design minimizes SWaP impact
- Multi-interface compatibility — SDI and CameraLink outputs for direct integration with existing systems
- Lens flexibility — compatible with fixed-focus athermalized, continuous zoom, motorized focus, and dual FOV lenses
Typical Applications
Long-range border surveillance, armored vehicle commander sights, naval vessel detection systems, UAV-mounted ISR payloads, and fire control imaging cores.
